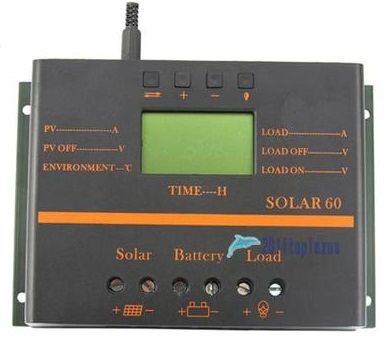

60A LCD Solar Battery Regulator Controller 12V / 24V With USB
60A
LCD Solar Battery Regulator Controller 12V / 24V With USB
60A Solar Panel Charge Controller Regulator
12V/24V
Compatible with 1440W(24v) solar panel with dark activated
function,
Max current is 60A
60A Solar Panel Charge Controller 12V/24V + LCD display
Compatible with MAX 1440W Solar Panel 12V/24V Auto Switch;
Timer Intigrated (Lighting function)
SOLAR60 Series controller has the following features:
Solar LCD series a kind of intelligent,
multipurpose solar charge and discharge controller
1, LCD screen display
2, Easy operation interface
3, PWM charging mode
4, Parameter user can reset,
5, A key to open and close the load,
6, A key to restore the factory settings,
7, Battery reverse discharge protection,
8, Battery reverse polarity protection
9, Battery under voltage protection,
10, Overload, short-circuit protection,
11, Automatic temperature compensation function,
12, USB 5V charging (for 500mA) for mobile phone.
SOLAR60 Datasheet:
Output Voltage: 12V/24V Automatically distinguish voltage
Rated working current:≤60A
Solar panels voltage:≤48V
Full Charge Cut:13.8V/27.6V
Low Voltage Cut:10.7V/21.4V
Temp ompensation:-4mv/℃/cell
Zero Load Loses:≤25mA
Low voltage recovery(settable):12.5V/25.0V
Loop pressure drop: ≤160mV
Installable maximum cable:(20mm2)
Working temperature: -10℃~60℃
Storage temperature: -30℃~70℃
Temperature requirement: ≤90％,no condensation
Dimension: 90 mm×188 mm×48 mm
Mounting hole spacing: 60 mm×178 mm --Φ5
Weight: ≤800g
