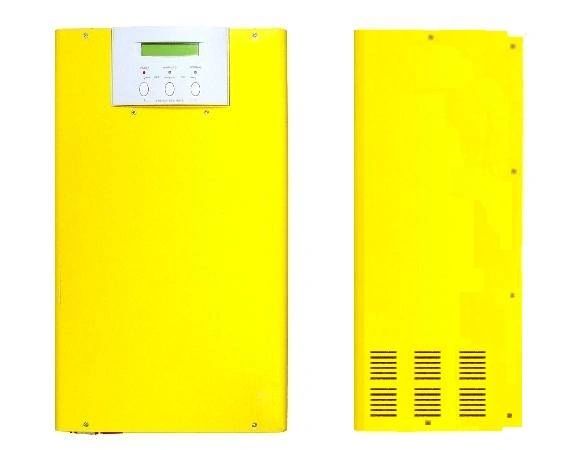

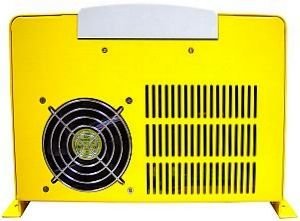

Inverter 2400watt 24Dc -220Ac With Charger 50Ah

SUPPORT both AC or DC priority adjustable in LCD

PIP-LC SERIES

1624

2424

ELECTRICAL SPECIFICATIONS

Continuous/Surge Output

1.6/3.2KW

2.4/4.8KW

Input Voltage Range

60~135V or 120~270VAC  (120 or 230V)

Output Voltage

110/115/120Vac or 220/230/240VAC (programmable)

Output Waveform

Pure Sine Wave

Output Frequency

50Hz or 60Hz (auto sensing 45Hz~70Hz)

Output Regulation

< 3% RMS for battery voltage range

Peak Efficiency

>85%

Input VDC / Range

24V: 20~29.3V

Transfer Time

< 8ms

Recharging Current

>50A

50A SOLAR CHARGER (OPTIONAL)

Charging Voltage

27.7V

Max PV Input Voltage

45V

PROTECTIONS

Batt. Reverse Polarity

By Fuse

Overload (UPS/Batt. Mode)

> 110%: Pre-Alarm, Amber LED Blinking / >110~150% for 30 sec, > 150% for 200ms Shutdown

Over Temperature

> 60°C Pre-Alarm

Low Batt (Alarm/Shutdown)

<21.5V / <20V

Short Circuit

Circuit (UPS Mode) / Electronic Circuit (Battery Mode)

LED Indicator

Green: Power, Amber: Warning, Red: Fault

LCD Display

UPS Status, Input / Output Voltage Frequency, Load, Battery Voltage, Battery Capacity, Temperature

ENVIRONMENTAL / MECHANICAL  SPECIFICATIONS

Certification / EMC

CE / EN62040-1-1, EN62040-2

Operating/Storage Temp.

0°C ~ +40°C / -20°C~ +70°C

Operating Humidity

20~90%RH Non-Condensing

Dimension

298*450*190mm

Weight/Packing

24Kg

25Kg

BATTERY VOLTAGE

12V

24V

48V

CHARGING VOLTAGE

13.8V

27.7V

55.2V

MAX. INPUT VOLTAGE

22.0V

45.0V

100V

MAX. INPUT CURRENT

50A

50A

50A

MAX. CHARGING CURRENT

50A

50A

50A

POLARITY PROTECT

YES

YES

YES

BACKFLOW PROTECT

YES

YES

YES

W*D*H

112mm * 80mm * 50mm
