LCD 30A Solar30 PWM Solar Panel Battery Regulator Charger Controller

LCD 30A Solar30 PWM Solar Panel Battery Regulator Charger Controller

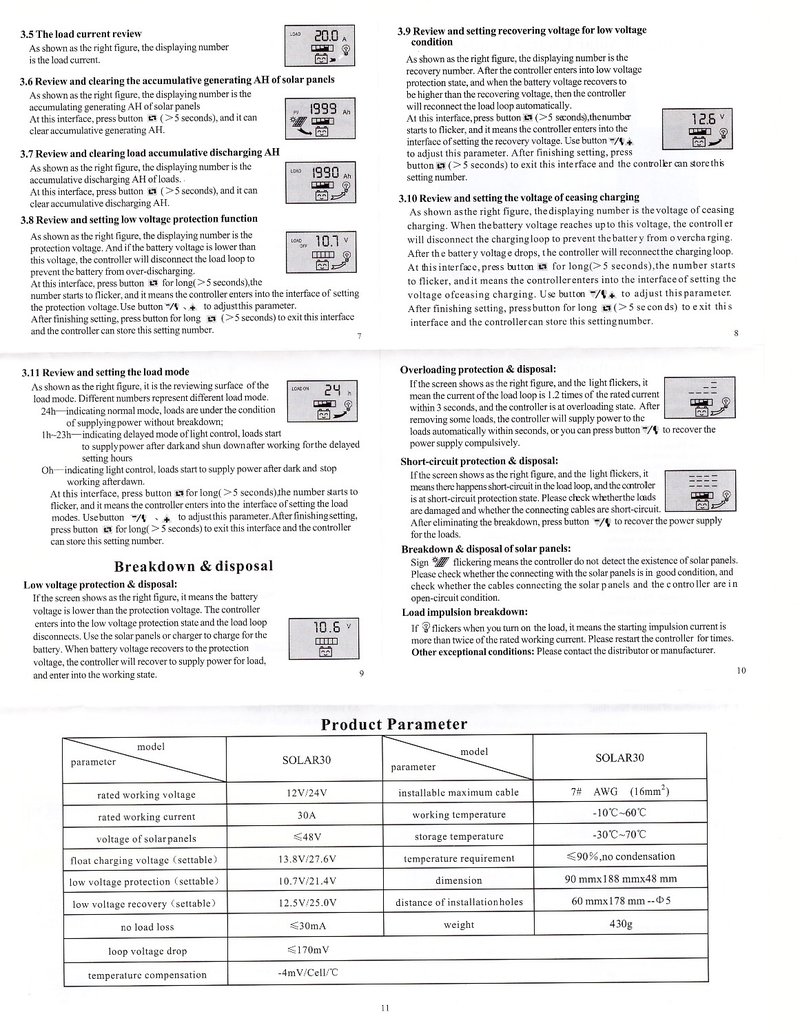

Specifications:

- Rated Voltage: 12V / 24V ( Auto Switch )

- Rated Current : 30A

- Max Input Solar Panel Power: 720W , Connect 24V Battery ( Connect 12V Battery, Max solar Panel Power: 360W )

- Open Voltage of Solar Panel : ≤ 50V

- Over-charging Protection : 13.8V / ( 27.6V )

- Low Voltage Disconnection / LVD: 10.7V / ( 21.4V )

- Low Voltage Reconnected / LVR: 12.5 V / ( 25V )

- No Load Loss: ≤ 30mA

- Loop Voltage Drop: ≤170mV

- Charging Mode: PWM mode

- Temperature Compensation: -4mV / Cell / °C

- Installation Cable area: ≤ 7# AWG (16 mm² )

- Operating Temperature: -10 ~ 60 °C

- Storage Temperature: -30 ~ 70 °C

- Humidity Requirements: ≤ 90% , no condensation

- Dimensions: 90 x 188 x 48 mm

- Mounting Hole Spacing: 60 x 178 ---φ5 mm

- Weight : 370g

- Colour: Black

Features:

- Visual LCD graphic symbol

- Brief key operation

- Grade auto switch of system voltage

- Intelligent PWM Charging Mode

- Auto temperature compensation

- Adjustable charging & discharging parameter

- Settable working modes of loads

- Accumulative function of charging & discharging AH

- Remote Monitoring Function

- Protection for battery back discharging

- Protection for battery low voltage

- Overloading & short-circuit protection

- Battery reversed protection

- Delayed auto restart after overloading protection

- CE & RoHS Certification
