MeterHub MorningStar Solar Controller
MeterHub
MorningStar Solar Controller
Solar Controller
Communication Hup
·
Enables multiple controllers to share a single
TriStar meter and display both single controller data (TriStar #1, TriStar #2…)
as well as aggregated data for the entire system.
·
Enables multiple controllers to share a single
Relay Driver and fully utilize all 4 channels of the Relay Driver for different
functions (alarms, load disconnects, generator starts) from multiple products.

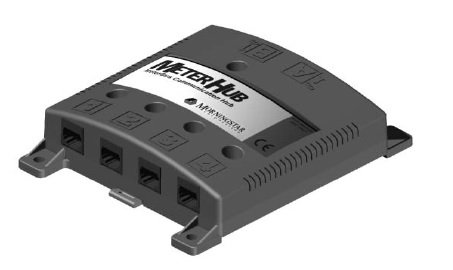

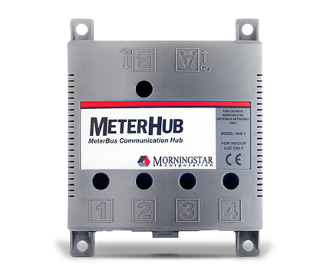

The MeterHub allows up to 15 Morningstar
products on a single MeterBus network. The product electrically isolates
devices that supply power to the network, preventing damage to the network in
the event of grounding problems. Five status LED’s indicate the proper network
connection to each port. The MeterHub is suitable for either wall or DIN rail
mounting.
Key Features and Benefits
Compatible
With:
·
SunSaver-MPPT™
·
TriStar™
·
TriStar-MPPT™
·
TriStar
Meter-2™
·
TriStar
Remote Meter-2™
·
Relay
Driver™
Included
in the Box:
·
MeterHub

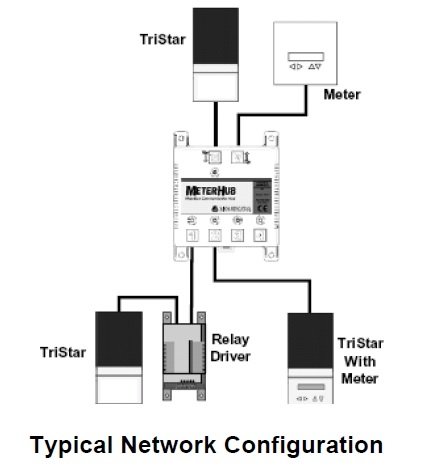

Typical Network Configuration
·
Operator’s
Manual
·
Five
Meterbus RJ-11 cables – each 1 meter in length
·
Four
mounting screws
