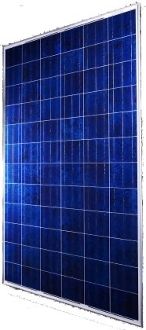

Solar Panel 280 watt Shunda Polycrystalline

$380.00

Solar Panel 280 watt Shunda Polycrystalline

Made in the USA.

Shunda
280-24/Vd
280 Watt, 24 Volt
Polycrystalline Solar Panel

Features

· High Power Tolerance (0-5%)

· High conversion efficiency (up to 14.4%)

· Withstands high wind-pressure, snow load and extreme temperature variations

Built for long service life

· Industry-leading, transferable 25-year power output warranty

· Rigorous quality control meeting the highest international standards
ISO 9001:2000 (Quality Management System) and ISO 14001:2004
(Environmental Management System) certified factories deliver
world class products

· Certification and standards: UL1703, IEC 61215, IEC 61730, conformity to CE

Specifications

Model	280-24/Vd
Maximum Power at STC*	280 W
Number of cells	72 (6 x 12)
Dimensions	77.0" x 39.1 " x 2.0 " (1956×992×50mm)
Weight	59.5 lb (27 kg)
Open Circuit Voltage (Voc)	44.8 V
Maximum Power Point Voltage (Vmp)	35.2 V
Short Circuit Current (Isc)	8.33 A
Maximum Power Point Current (Imp)	7.95 A
Operating Temperature	-40ºC to +85ºC
Maximum System Voltage	600 VDC
Output Terminal	4.0 mm2 (0.006 inches2), symmetrical lengths (-) 1100 mm (43.3 inches) and (+) 1100 mm (43.3 inches)
Series Fuse Rating	20 A
