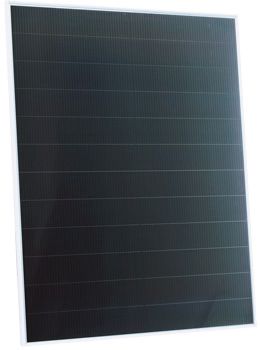

solar panel sharp 115 watt
$200.00
$42.00
مواصفات الشركة المصنعة
Tandem structure with an amorphous and a microcrystalline silicon film with stabilized module efficiency of 8.1%.
- Tandem structure with an amorphous and a microcrystalline silicon film with stabilized module efficiency of 8.1%.
- Ideal for grid-connected photovoltaic systems on roofs.
- Use of white glass, EVA plastic and tape to protect the module from atmospheric phenomena (water, humidity, etc.) And an anodized aluminum frame with drainage holes for prolonged use life.
- The module can be operated and installed by one person (1.42 m2, frame width 1 m, weight 19 kg).
- Higher energy yields per watt, at both high temperatures and with diffuse light.
- junction box for quick connection of cables with waterproof.
General
Peak power (Wp) 115 module efficiency (%) 8.1 Weight kg) 19 Physical characteristics
cell type Cell of amorphous and microcrystalline silicon tandem. Dimensions (WxHxD) (mm) 1409x1009x46 electrical characteristics
open circuit voltage Voc (V) 58.6 Short-circuit current Isc (A) 3.26 Pressure at the maximum Vpm power (V) 44.5 Current at maximum power Ipm (A) 2.59 System voltage (V DC) 1000 Coefficients and thermal characteristics
αPm (% / ° C) -0.24 αIsc (% / ° C) 0.07 αVoc (% / ° C) -0.30 operating temperature (° C) -40 to +90 Storage Temperature (° C) -40 to +90
