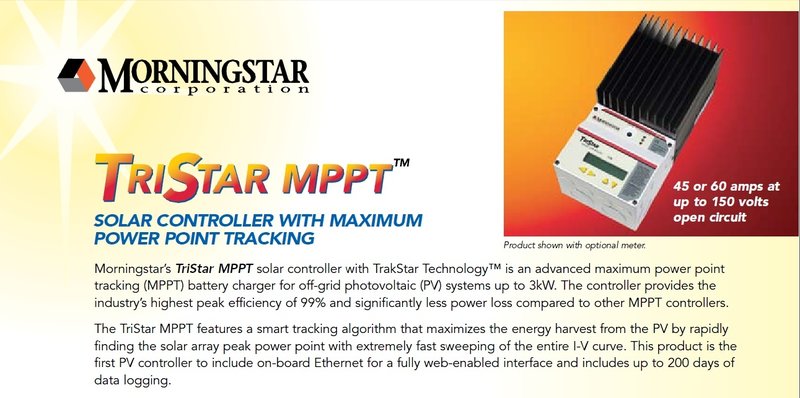

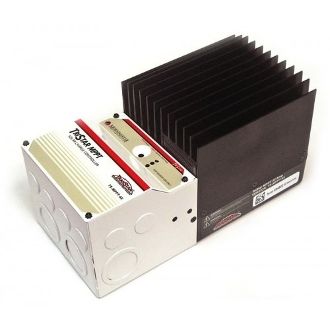

Tristar 60Ah MPPT controller Made In USA

Tristar 60Ah MPPT controller Made In USA

Model Numbers

TS-MPPT-60, TS-MPPT-45

Key Features and Benefits

·         Maximizes Energy Harvest

·         Extremely High Reliability

·         Very High Efficiency

·         Extensive Networking and Communication Capabilities

·         Metering and Data Logging

·         Certified to IEC 62093

Related Products

 http://www.morningstarcorp.com/en/support/library/TSMPPTdsEng.pdf

Current 45 amps 60 amps

• Nominal Maximum

Solar Input 12 Volt 600 Watts 800 Watts

24 Volt 1200 Watts 1600 Watts

48 Volt 2400 Watts 3200 Watts



TS-MPPT-45 and TS-MPPT-60

• Peak Efficiency 99%

• Nominal System Voltage 12, 24, 36 or 48 volts DC

• Max. Solar Open Circuit Voltage 150 volts DC

• Battery Operating Voltage Range 8-72 volts DC

• Maximum Self-consumption 2.7 Watts

• Transient Surge Protection 4500 Watts/port

Electronic Protections

• Solar: Overload, Short Circuit, High Voltage

• Battery: High Voltage

• High Temperature

• Lightning and Transient Surges

• Reverse Current at Night

Battery Charging

• Charging algorithm 4-stage

• Charging stages Bulk, Absorption, Float, Equalize

• Temperature Compensation

Coefficient –5mV/°C/cell (25° ref)

Range –30°C to +80°C

Set points Absorption, Float, Equalize, HVD

Note: Remote Temperature Sensor is included.

Mechanical

• Dimensions 29.1 x 13.0 x 14.2 cm

   11.4 x 5.1 x 5.6 inch

• Weight 4.2 kg / 9.2 lbs.

• Max. Wire Size 35 mm² / 2 AWG

• Conduit knockouts M20; ½, 1, 1 ¼ inch

• Enclosure Type 1 (indoor and vented)

   IP20

Environmental

• Ambient Temperature –40°C to +45°C

• Storage Temperature –55°C to +100°C

• Humidity 100% non-condensing

• Tropicalization Epoxy encapsulation

   Conformal coating

Marine rated terminals

Communication Ports

TS-MPPT-45 TS-MPPT-60

• MeterBus Yes Yes

• RS-232 Yes Yes

• EIA-485 No Yes

• Ethernet No Yes

options

• TriStar Meter-2  (TS-M-2)

• TriStar Remote Meter-2  (TS-RM-2)

• Meter Hub  (HUB-1)

• Relay Driver  (RD-1)

Certifications

• CE Compliant

• ETL Listed (UL1741)

• cETL (CSA C22.2 No. 107.1-01)

• FCC Class B Part 15 Compliant

• Complies with (NEC) U.S. National Electric Code

• RoHS Compliant

• Manufactured in a certified ISO 9001 facility
